Description
Donaldson 4WD Filter Kit X902718 suits:
Toyota Landcruiser 70 Series (1990-2007) 4.2L Diesel
HDJ79 1HD-FTE (2001-2007) HZJ75 1HZ (jan1990-oct2002)
Cross Reference: MK14209 | RSK26 | K-11030 | WK33
Modern diesel engines require clean, dry fuel for optimum combustion, maximum power and the lowest emissions level. Dirt and water are enemies of High Pressure Common Rail fuel systems and can dramatically reduce the service life of fuel components. Donaldson offers a comprehensive range of service kits which include the necessary filters to make servicing easy. Their Heavy-Duty filter kits have been designed specially to protect your investment in the harshest environments.
Kit P902718 includes:
DBA5110 - Air Filter Primary
Cross Reference: 17801-60050, 17801-61030, 17801-66030, 17801-68020, 17801-68030, 17801-68202, 17801-86020
Outr.Diam: 219mm (8.62 inch)
Innr.Diam: 109mm (4.29 inch)
Length: 144mm (5.67 inch)
Efficiency: 99.9%
Eff.Test Std: ISO 5011
Primary App: TOYOTA 1780168020
Type: Primary
Style: Round
Media Type: Ultra-Web Nanofiber
P550413 - Oil Filter
Cross Reference: 90915-03006, 90915-30002
Outr.Diam: 100 mm (3.94 inch)
Thread Size: M24 x 1.5
Length: 120 mm (4.72 inch)
Gasket OD: 80 mm (3.15 inch)
Gasket ID: 67 mm (2.64 inch)
Efficiency 95%: 4 micron
Efficiency 99%: 50 micron
Efficiency Test Std: JIS D 1611
Anti-Drainback Valve: Yes
Bypass Valve: Yes
Bypass Valve Setting LR: 1.7 bar (25 psi)
Bypass Valve Setting HR: 2.1 bar (30 psi)
Media Type: Cellulose
Collapse Burst: 6 bar (87 psi)
Type: Combination
Style: Spin-On
Primary Application: TOYOTA 9091503006
P550385 - Fuel Filter Water Separator Spin On
Cross Reference: 23003-64010, 23300-64010, 23303-56040, 23303-64010, 23303-64020, 23303-7600171, 23303-7600271, 23390-64480
Outr.Diam: 94mm / 3.70"
Thread Size: 3/4-16
Length: 138mm / 5.43"
Gasket OD: 63mm / 2.48"
Gasket ID: 56mm / 2.20"
Outlet Size: M36 x 1.5
Efficiency Beta 75: 10 MICRON
Efficiency Test Std: JIS D 1611
Emulsified H2O Efficiency: 5%
Type: Water Separator
Style: Spin-On
Media Type: Cellulose
Prim.App: TOYOTA 2330364010
P551339 - Fuel Filter Cartridge
Cross Reference: 04234-68010
Outr.Diam: 74mm / 2.91"
Innr.Diam: 15mm / 0.59"
Length: 74mm / 2.91"
Efficiency 95%: 17 MICRON
Eff.Test Std: SAE J1985
Style: Cartridge
Media Type: Cellulose
Prim.App: TOYOTA 0423468010
Western Filters only sells filters of the highest quality and only include reputable brands - the industry's best including; Baldwin, Briggs and Stratton, Donaldson, Fleetguard, Fuel Manager, K&N, Mann, Parker Racor, Sakura, Wesfil Cooper.

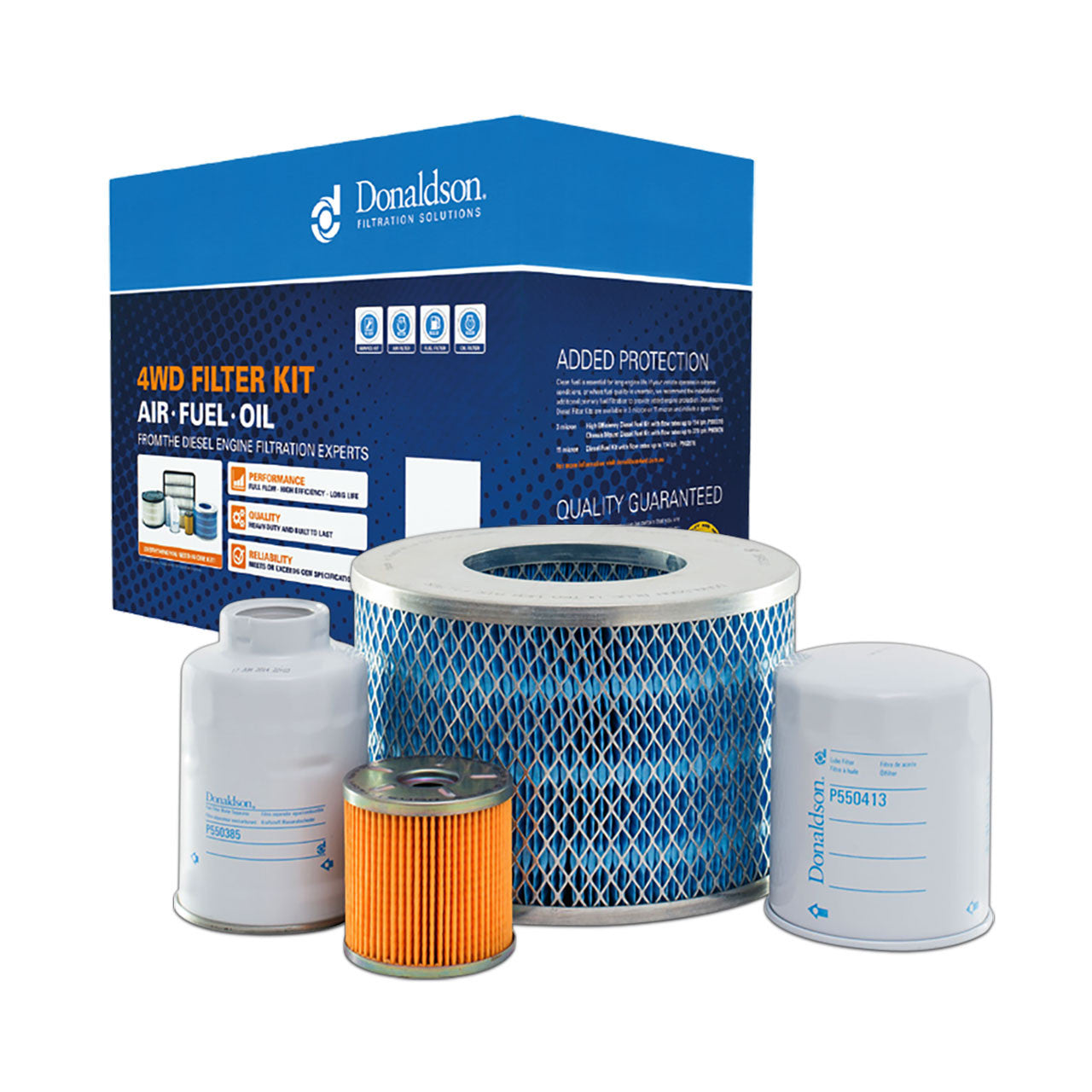

**Please note: Kit photo is a representation only and may not match actual items. If you are unsure that this is the correct kit for your vehicle, please contact us for confirmation. We'll get back to you ASAP, usually within 24hrs on business days.
