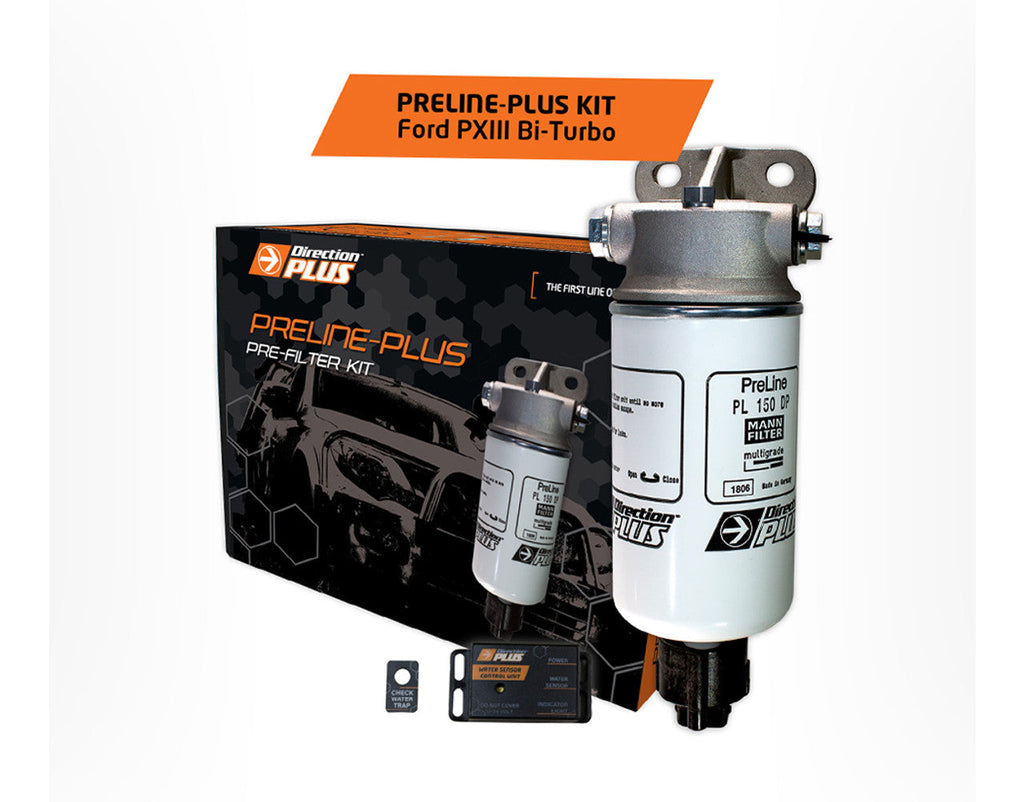

PL664DPK Ford Ranger Raptor Everest 2018-19 2.0L Bi-Turbo YWNS Direction-Plus PreLine Pre-Filter Kit

Mann PreLine 150
Direction-Plus PreLine-Plus Diesel Prefilter Kit PL664DPK suits:

Ford Raptor 2018-19 PX3 2.0L Bi-Turbo YWNS
Ford Ranger 2018-19 PX3 2.0L Bi-Turbo YWNS
Ford Everest 2018-19 PX3 2.0L Bi-Turbo YWNS

Direction-Plus PreLine-Plus PL664DPK is an innovative pre-filter system for diesel fuel which suits Ford Everest, Ranger, Raptor PXIII Bi Turbo models. PreLine-Plus pre-filter system is designed specifically to cope with extreme weather conditions and poor fuel quality ensuring a high degree of water separation and particle pre-separation.

Water Alert System
The PreLine-Plus kit includes an intuitive multi-stage water alert that separates it from other kits on the market. The alarm will notify the driver in the event that water is detected in the fuel which also eliminates the need to manually check for water.

Specifics: Weight: 5kg / Dimensions: 37l ×27w ×16h cm

MANN+HUMMEL PreLine Prefilter Series:

Reduces the contamination level of fuel already upstream of the pre-feed pump in the low pressure circuit. In addition, the Multigrade F filter media separate more than 93 percent of any water in the fuel and therefore meet the requirements of leading manufacturers of injection systems. The perfect interaction between the PreLine prefilter and the MANN+HUMMEL main filter offers maximum protection for the sensitive injection system and contributes to the economic running of your engine. Main Features & Advantages: For use with diesel fuel DIN ISO 590 (5% FAME) DIN 51 628 (7% FAME) kerosene JET-A1 :: For volume flow rates up to 150 l/h :: Use of ‘multigrade high performance’ media :: 93% water separation :: Modular system for excellent flexibility :: Easy handling during servicing :: Integrated and effective hand pump with 45° position to drain off water and for priming during service :: Integrated water collector :: Parallel operation possible with a number of systems

PreLine 150 Specifications:
Comes with a Single Head offering variable connection possibilities Robust design in different sizes Designed for easy servicing Spin-on filter.
Head Connection Thread: M16 x 1.5
Head Length: 163mm / Head Outr.Diam: 76mm
Spin-on Filter: PL 150 / Nominal Flow Rate: 150
Water Separation: >93%
Operating Pressure: 4
Dimensions: 98 x 102 x 247mm

For additional Information: MANN PreLine 150 >
