Description

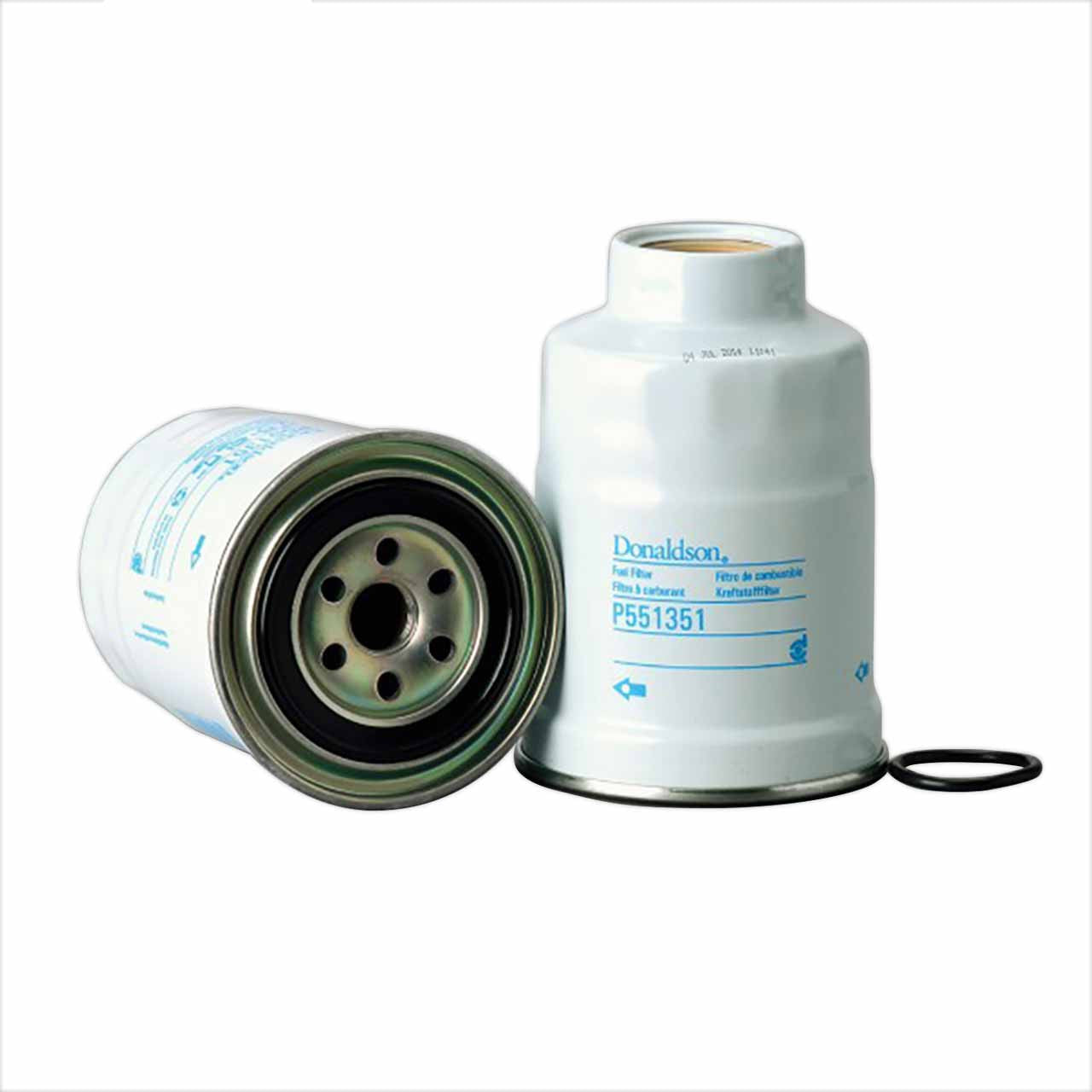

P551351 Donaldson Fuel Filter Water Separator Spin-On
Nissan Navara D40 2007-14 2.5L ZD25DDTI
Nissan Navara D22 1997-14 3.0L ZD30DDT 3.2L QD32 2.7L TD27
Nissan Patrol 1987-2007 GQ GU 4.2L TD422
2.8L RD28TI 3.0L 4.2L GUII ZD30DDTI GUIII TD42T3
Nissan & Isuzu Trucks 1996-01 QD32 BD30 B4.4 B6.6
Atleon Eco T Series TD42QD32 K Series
Cross Reference:
Baldwin BF7532
Nissan 16403-05E01, 16403-59E00, 16405-05E01
Exman 5017 FC16080 FT3228 SFC226 SFF5E01
Isuzu 1640359 1640359E00 1640359E0A
Specifications:
Outer Diameter 97.8mm (3.85 inch)
Thread Size 3/4-16
Length 138.9mm (5.47 inch)
Gasket OD 73mm (2.87 inch)
Gasket ID 51mm (2.01 inch)
Efficiency 99% 10 micron
Efficiency Test Std JIS D 1611
Emulsified H2O Efficiency 95.00 Percent
Collapse Burst 6.9 bar (100 psi)
Type Water Separator
Style Spin-On
Primary Application Nissan/UD Trucks 1640505E01
Package Dimensions:
Gross Length 3.94" (10.2cm)
Gross Width 3.94" (10.2cm)
Gross Height 5.91" (15cm)
Gross Weight 0.95lb (0.43kg)
Donaldson Diesel Fuel Filters
Uniquely designed to protect injectors and pumps and keep engines and heavy-duty Equipment running smoothly. Today€˜s diesel engines need to maintain high performance levels to remain compliant with stringent emissions regulations. Fuel filtration plays a key role, with current high presSure common rail fuel injectors operating at pressures up to 2,000 - 3,100 bar / 30,000 - 45,000 psi. Clean fuel helps minimize expensive repairs and unplanned downtime. Donaldson offer fuel filtration products to protect your fuel systems including injectors, pumps and engines. We offer a complete line of Fuel Filters for popular on and off-road applications. Spin-Ons and Cartridges are available in a wide range of filter medias. Donaldson Air / Oil Separators efficiently remove oil mist from compressed air while maintaining low pressure drop and maximum airflow.
